SP-4000 ion wind gun introduction and technical parameters
-
SP-4000 ion wind gun introduction and technical parameters
-
-
The ion wind gun is a hand-held special device for static elimination. It is a kind of static elimination product using compressed gas series. It has the characteristics of simple installation, stable operation, strong wind speed and rapid elimination of static electricity. SP-4000 ion air gun combines static electricity and dust removal functions into one, small size, light weight, flexible operation, convenient maintenance and wide application range.
-
-
The SP-4000 ion wind gun must be equipped with an SP-4000 high voltage generator. Ion air gun is the first choice tool for electronic products processing, printing, surface treatment, plastic processing, spraying industry and other places with obvious electrostatic hazards and serious dust pollution.
-
-
The ion wind gun can generate a large number of positive and negative air masses, which are blown out by the compressed gas at high speed to neutralize the charge on the object. When the surface of the object is negatively charged, it attracts a positive charge in the gas stream. When the surface of the object is positively charged, it attracts the negative charge in the gas stream, so that the static electricity on the surface of the object is neutralized. To achieve the purpose of eliminating static electricity, high-speed compressed gas can also blow away stubborn dust on the object.
-
-

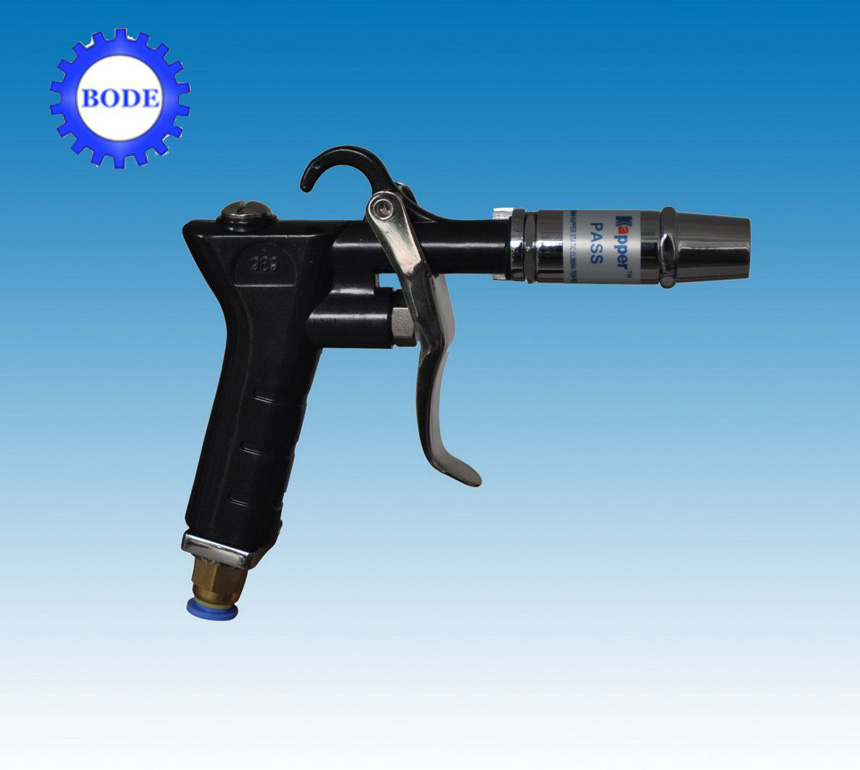

![SP-4000 ion wind gun introduction and technical parameters](/uploads/jinghuashebei/860X770_sp4000lizi_fengqiang_jieshao_tu-001.jpg)
-
-
Technical Parameters:
-
-
Working voltage: 4.0kv
-
-
Working current: 200uA/M
-
-
Working temperature: -10~50oC
-
-
Working pressure: 45-70psj
-
-
Effective range: ≤1.5m
-
-
Neutralization time: <2s
-
-
Weight: 1.7kg
-
